Marantec Comfort 380

Technical Specifications:

• 24V DC motor
• Electrical Input: 240V
• Max door width up to 6000mm
• Max door weight up to 185kg
• Max peak pulling force: 1100N
• Max cycles per day: 60

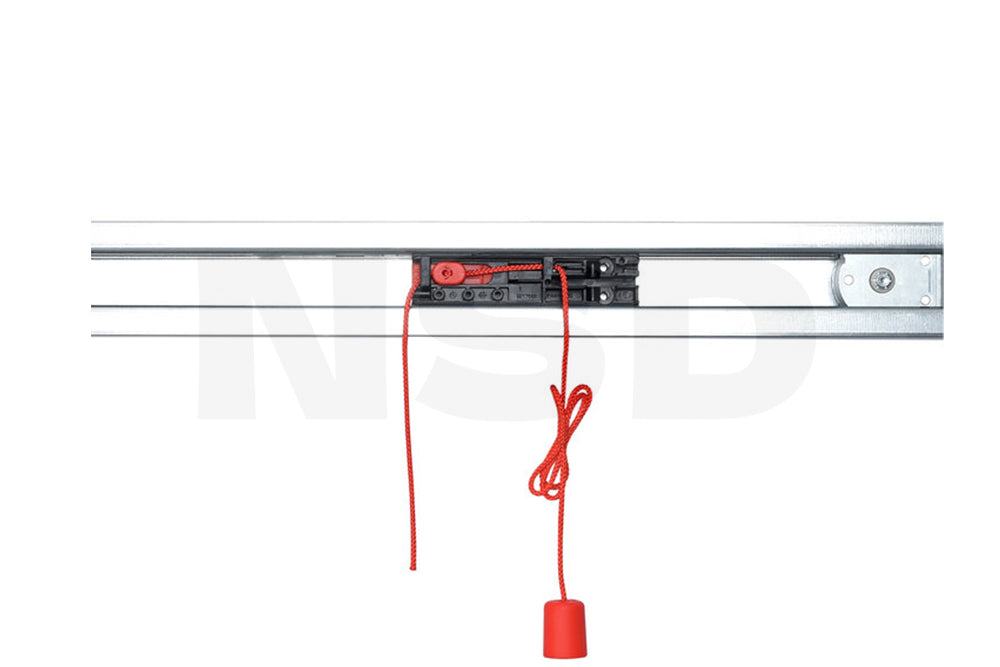

• C-rail with belt drive

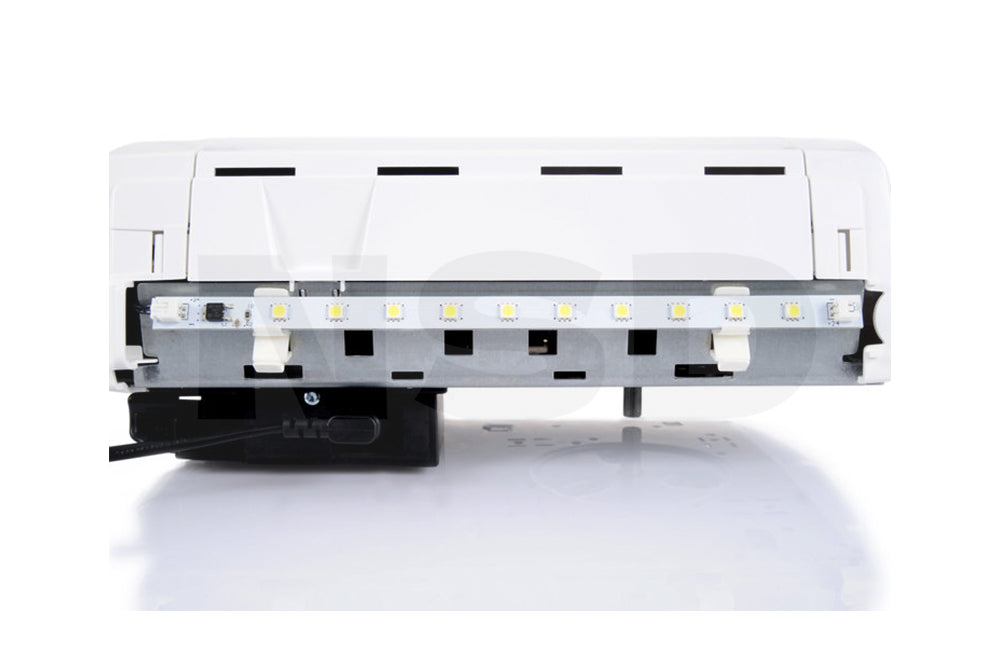

• LED courtesy light
• 433.92MHz transmitter frequency with multi-bit technology
• Headroom required: minimum door headroom + 50mm
• Suitable for residential spring balanced sectional doors
• Made in Germany


C-rail options:

• SZ 10 - 2m Long tilt door rail
• SZ 11 - Doors up to 2.25m high
• SZ 12 - Doors up to 2.5m high
• SZ 13 - Doors up to 3.26m high

Manual Download

*PICK UP ONLY*
