FAAC 844 Kit

Technical Specifications:

• Power supply: 230V AC 50(60) Hz
• Absorbed power: 660W
• Absorbed current: 3.6A
• Traction and thrust force: 0 - 1160N (pinion Z16)
• Motor rotation speed: 1400rpm
• Reduction ration: 1:30
• Weight with Oil: 14.7kg
• Mac ate weight: 1800kg
• Max gate length: 9m
• Gate speed: 9.5m/min (pinion Z16)
• Protection class: IP44
• Type of Oil: FAAC HP Oil
• Operating ambient temperature: -20°C to +55°C
• Limit switch: Magnetic / Inductive
• Clutch: Twin-disk in Oil-Bath


Kit Contains:

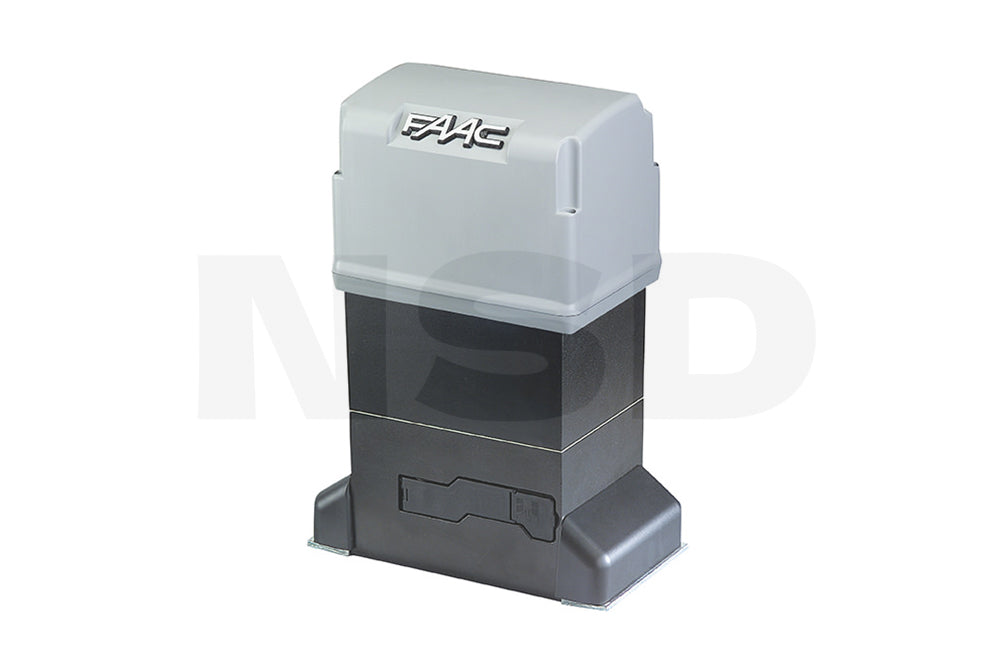

• 1x 844 Industrial Gearmotor
• 4x Strengthened Nylon Rack
• 2x Remote 433 RC 4-button
• 1x 1 Channel 433 RC Receiver Card

Manual Download

*PICK UP ONLY*
